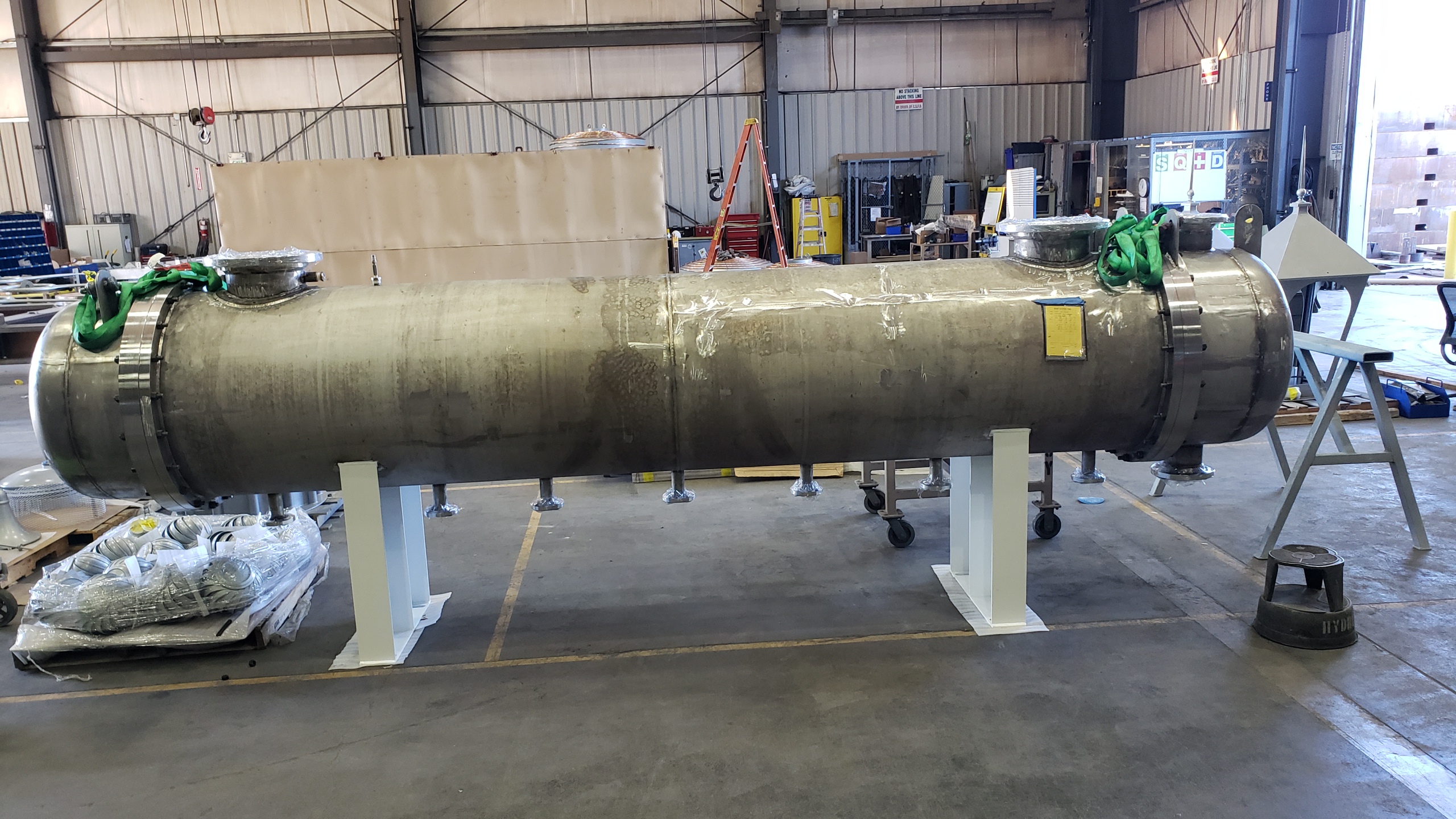

ASME Heat Exchangers
Springs Fabrication is recognized as an industry leading pressure vessel manufacturer for high quality design, engineering, and fabrication of custom American Society of Mechanical Engineers (ASME) heat exchangers in accordance with the ASME Boiler and Pressure Vessel code, Section VIII, Division 1 as well as our customer’s most stringent specifications. Our talented design and engineering team possess 35+ years of experience and code knowledge to design heat exchangers in the most cost-effective manner within the specified requirements.
Springs Fabrication`s strength is in the design and fabrication of specification intensive requirements. Serving most all industries, Springs Fabrication is the solution for high-quality and cost-effective manufactured solutions. Learn more on our Design and Engineering capabilities page.
Shell & Tube - All TEMA Types
Evaporators | Condensers | Chillers | Boilers | Coolers | Evaporators | Heaters
Materials Worked With:
Carbon Steel
CR-Mo
Clad Alloys
Stainless Steel
Aluminum
Nickel alloys, 200, 400, 600, 625, 800, 825
Hastelloy C276, B3, C22, C2000
Alloy 20
Alloy 718
AL6XN
Duplex and Super Duplex
Thermal Design:
Springs Fabrication subcontracts thermal design when not provided by our customer. Thermal design is commonly rendered using Heat Transfer Research, Inc. (HTRI) to achieve an optimum design. This method provides the most suitable exchanger technology with maximum reliability and efficiency, at a minimum cost.
All exchangers are designed in accordance with the TEMA designation of heat exchangers including shell and U-tube exchangers for single phase, multi-phase, and multi-component condensers (horizontal, vertical, and reflux) and reboilers (kettle, thermo siphon, and falling film).
Mechanical Design:
We provide complete mechanical design using Codeware’s Compress software. Our heat exchangers are designed and fabricated in accordance with ASME Section VIII, Div. 1, and Tubular Exchanger Manufacturers Association (TEMA) standards.

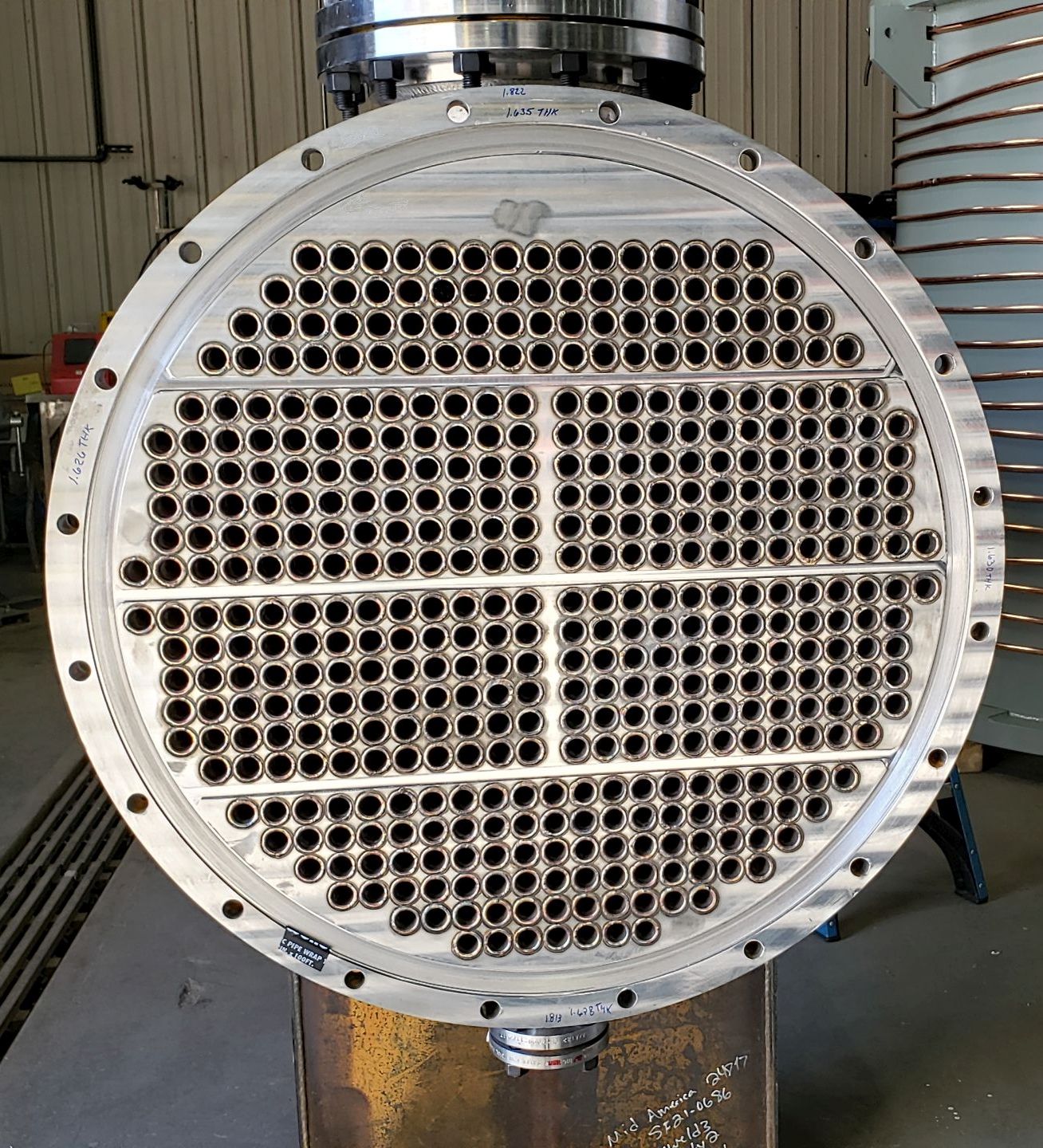

Heat exchanger experience includes all TEMA and ASME Section VIII, Division 1, Part UHX configurations that include fixed tube sheet, U-bundle and floating head pull through bundle types.

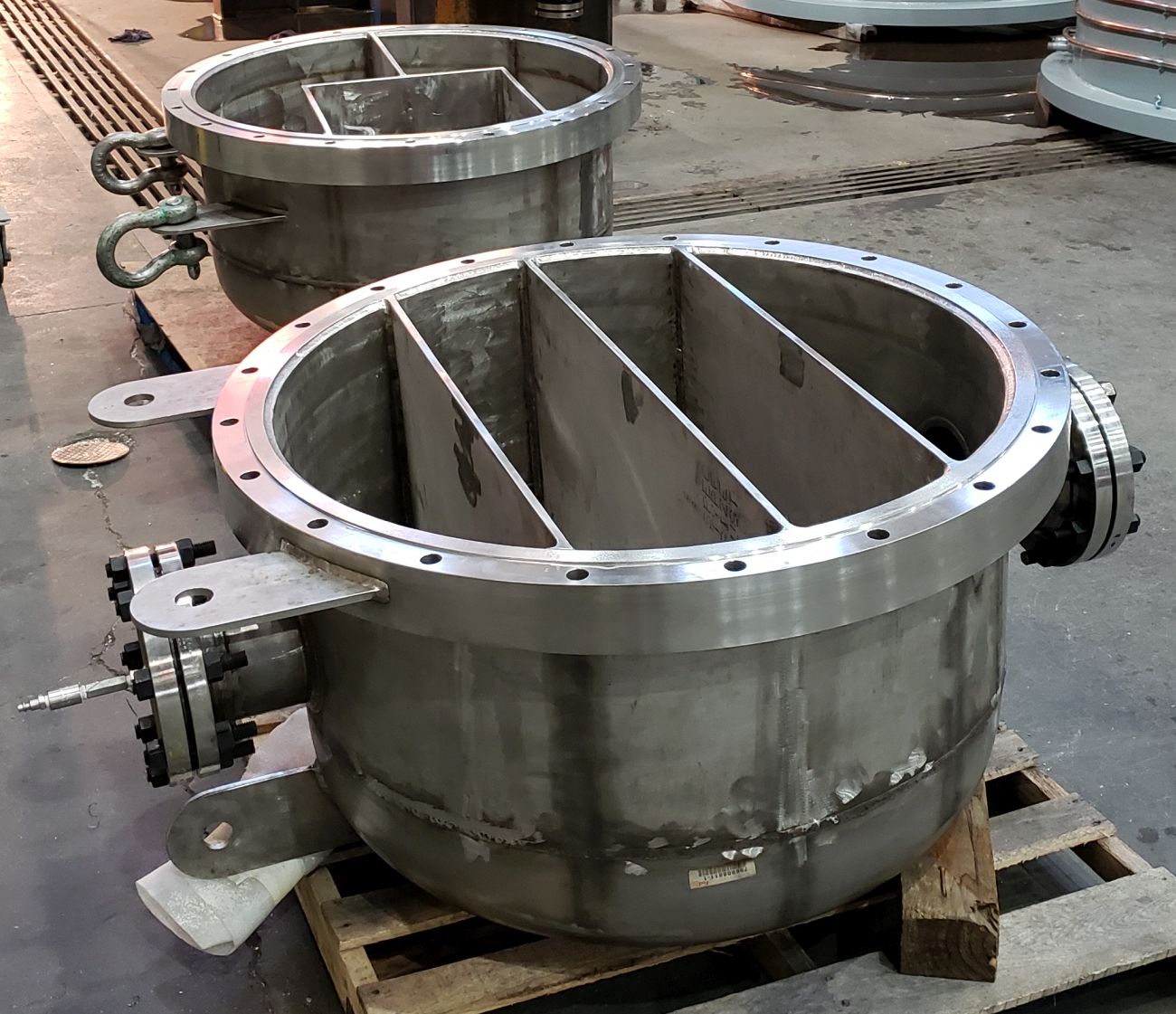

Design specialties include high efficiency multi-pass exchangers with heavy bundles installed on fully functional skidded systems.
Certifications:
ASME "U" Stamp - Certificate of Authorization to manufacture ASME pressure vessels
NBBI "R" Stamp - Certificate of Authorization to make repairs and alterations to ASME pressure vessels
NBBI "NB" Stamp - Certificate of Authorization to Register ASME pressure vessels with the NBBI
